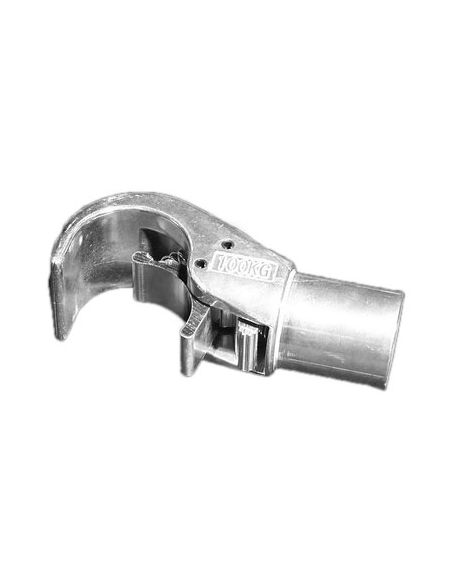

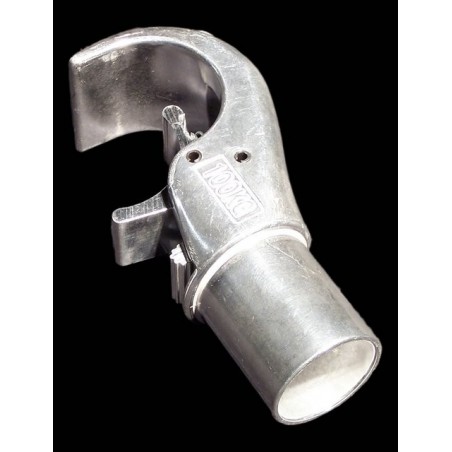

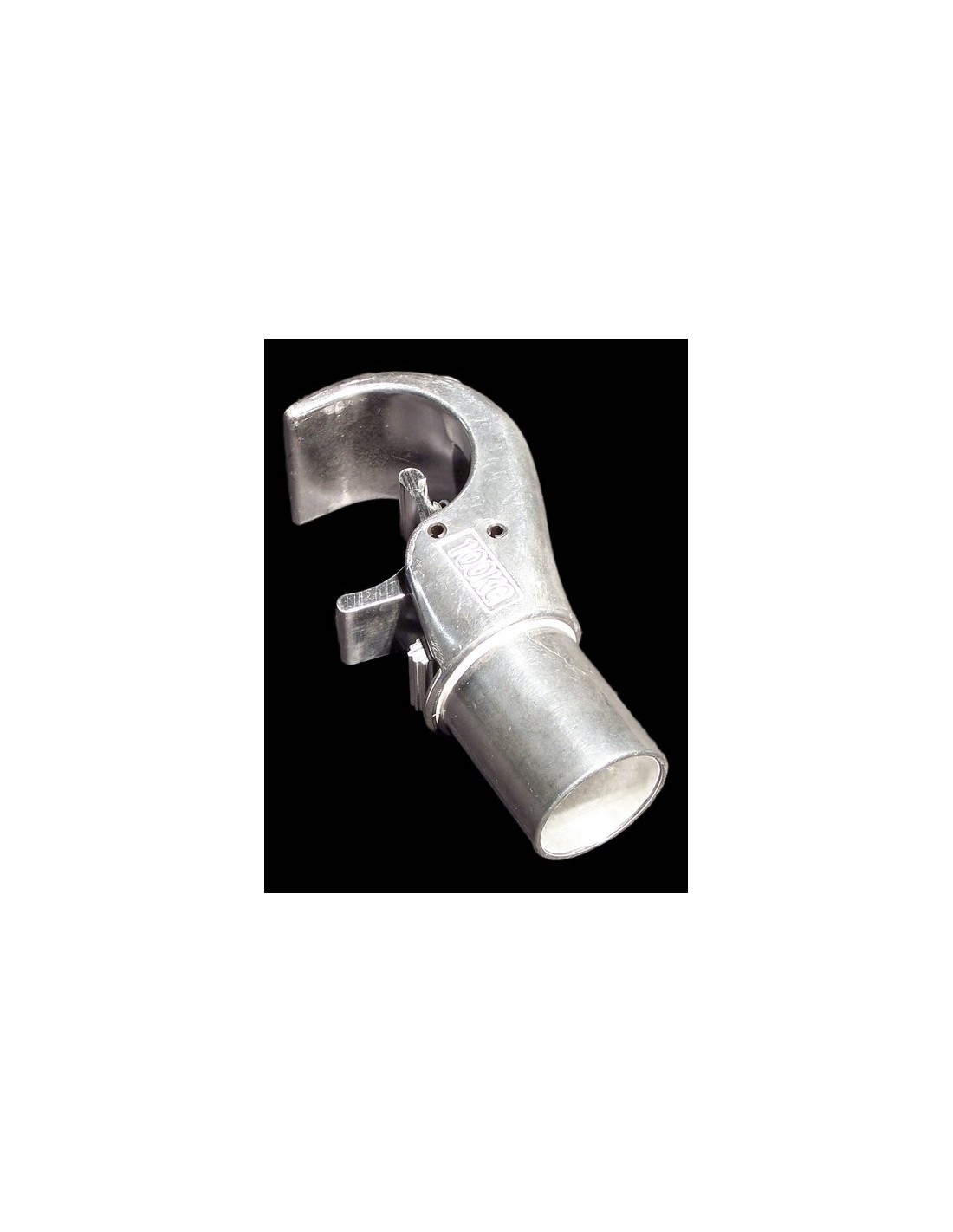

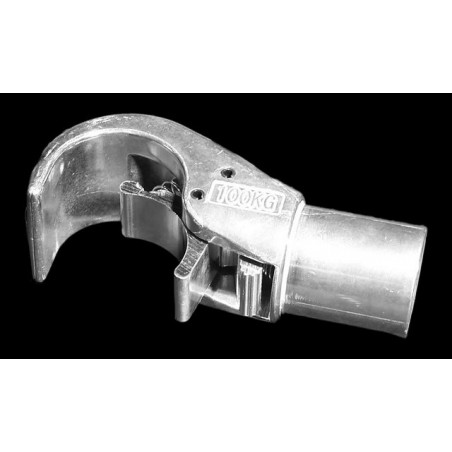

HOOK ALU. 100KG - FOR TRUSSING SYSTEMS (QLA-500)

Former product symbol: [F0000090]

Safe Information:

A. Never exceed the Safe Working Load (SWL) shown on the clamp.
B. Only use the clamp within the designed tube parameters (50mm)
C. All clamps should be visually inspected before use. In the event of any damage the
clamp should be taken out of service and returned to an ‘Approved Doughty Service
Agent’ for inspection. (see our dealer locator on our web site for a comprehensive list of
Authorized Service Agents)
D. When used in conjunction with other accessories, care must be taken to ensure that the minimum SWL of any component is not exceeded.
E. Doughty Engineering Ltd does not recommend using any clamps which do not fully
encompass the tube for overhanging. All open clamps including hook clamps should be
used in a vertical orientation only.

Feature:
Hook for installing projectors, lighting effects etc. via a trussing system
For trussing systems with a tube diameter of 50mm
Quick - lock - Hook
Max Load: 100kg
Weight: 1 kg
